Oil Cooled Transformer Rectifier (Top-Bottom Type)
YUXI’s oil cooled transformer rectifier unit present excellent performance under various circumstances where air cooled series could not work properly.(i.e. deserts, offshore, Atmospheric aggressive environment like refineries, hazardous and explosive environments, etc. )The standard air-cooled transformer rectifier series can be divided into Manual and Auto models. Manual model adopts standard 25-step output adjustment, while smart Auto model adopts standard 6-step output adjustment, and can also implement various automatic adjustment functions through touch screen panel / LED digital display + main control board, including constant potential, constant current, manual setting output, timing interruption and other functions. And it can be combined with the manual hierarchical output function to reasonably carry out continuous output adjustment within the full power range.
Description
—— Functions ——
Rectifier Module: Thyristor / Silicon Rectifier
Mode Switch: Auto / Manual(25-step outputs)
Touch Screen Panel
LED Digital Display
Timing Interruption Program
Surge Protection
Lightning Protection (optional)
Sun Protection (optional)
Data Remote Transmission and Control (optional)
GPS Synchronization Current Interrupter (optional)
—— Working Environment ——
Temperature: 15°C ~ 50°C
Humidity: 15% ~ 90% RH
Air Pressure: 86kPa ~ 106kPa
Parameters
| Category | Oil Cooled Transformer Rectifier |
|---|---|
| Power Input | AC 220V, AC 380V |
| Output Voltage | DC 100V, 50A |
| Insulation Resistance | >10mΩ |
| Control Range | -3V~3V |
| Control Accuracy | 10mV |
| Noise | < 80dB |
| IP Level | IP55, IP66 |
| Lifetime | 30 yrs. |

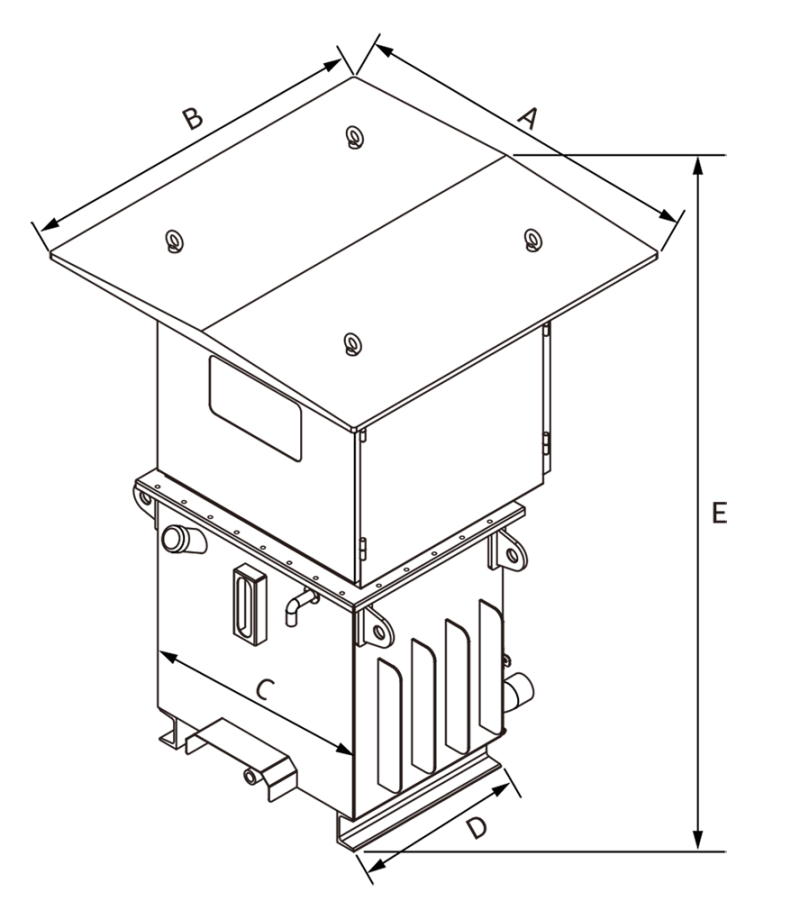

Specification
