Aluminum Butyl Flashing Tape

YUXI’s aluminum butyl flashing tape is a premium cold applied tape that excels in both water-tight seal and corrosion protection. They are widely used for pond covering membranes, roof sealing, drain pipe leak sealing, pipe guttering corrosion protection, tank insulations, surface crack repairs, flashing of skylights, and a large number of construction and maintenance situations.

Add to wishlist

Ask A Question

Categories: Accessories, Tapes

Description

YUXI’s aluminum butyl flashing tape is a premium cold applied tape that excels in both water-tight seal and corrosion protection. This self-adhesive tape is composed of three layers: an adhesive layer made of bituminous rubber compound or rubberized bitumen, a film backing which can be aluminum foil, aluminum foil coated polyester film, or woven aluminum foil, and an interleaving layer of siliconized film.

Aluminum Butyl Flashing Tape Structure

—— Features ——

Our aluminum butyl flashing tape offers good conformability and consistent thickness, with excellent UV and weather resistance. It’s highly resistant to chemicals and corrosion for various applications.

Good conformability and consistent uniform thickness: easily adapts to various shapes and surfaces, ensuring a reliable and consistent seal.
Excellent UV and weather resistant: resists degradation from sunlight and environmental factors, ensuring long-term durability.
Excellent resistance to chemicals and corrosion: provides robust protection against a wide range of chemicals and corrosive substances.
Excellent adhesion to most substrates without needing a primer: adheres strongly to a variety of surfaces without the need for a primer, simplifying the installation process.
No external heat required for most typical applications: can be applied without the need for external heat in most typical applications, saving time and effort.

Aluminum Butyl Flashing Tape

—— Practical Application ——

Our aluminum flashing tapes can be applied on most surfaces including concrete, wood, brick and other materials used in the building industry. They are widely used for pond covering membranes, roof sealing, drain pipe leak sealing, pipe guttering corrosion protection, tank insulations, surface crack repairs, flashing of skylights, and a large number of construction and maintenance situations.

Aluminum Butyl Flashing Tape--2

—— Physical Properties ——

Technical Measurement	Test Method	Performance				Add New	Add New	Add New
Tape Thickness	ASTM D1000	1.02 mm (40 mils)	1.27 mm (50 mils)	1.65 mm (65 mils)	2.03 mm (80 mils)
Tensile Strength	ASTM D1000	75 N/cm (685 oz/in)				Add New	Add New	Add New
Elongation at Break	ASTM D1000	15%				Add New	Add New	Add New
Breaking Strength	ASTM D1000	＞50 N/cm (457 oz/in)				Add New	Add New	＞50 N/cm (457 oz/in)
Adhesion Strength	ASTM D1000	30 N/cm (274 oz/in)	33 N/cm (302 oz/in)	35 N/cm (320 oz/in))	38 N/cm (347 oz/in)
Water Vapor Permeability	ASTM E96	0.2 g/m²/24 h				Add New	Add New	0.2 g/m²/24 h
Application Temperature	/	5 ℃ ～ 50 ℃				Add New	Add New	Add New
Service Temperature	/	-30 ℃ ～ 85 ℃				Add New	Add New	Add New

Additional information

Category	Anti-Corrosion Tape
Material	Butyl Rubber, Polyester
Application	Pipeline, Pond Covering Membrane, Roof, Tank

Note: All dimensions shown above are nominal. The information provided is subject to change without notice.

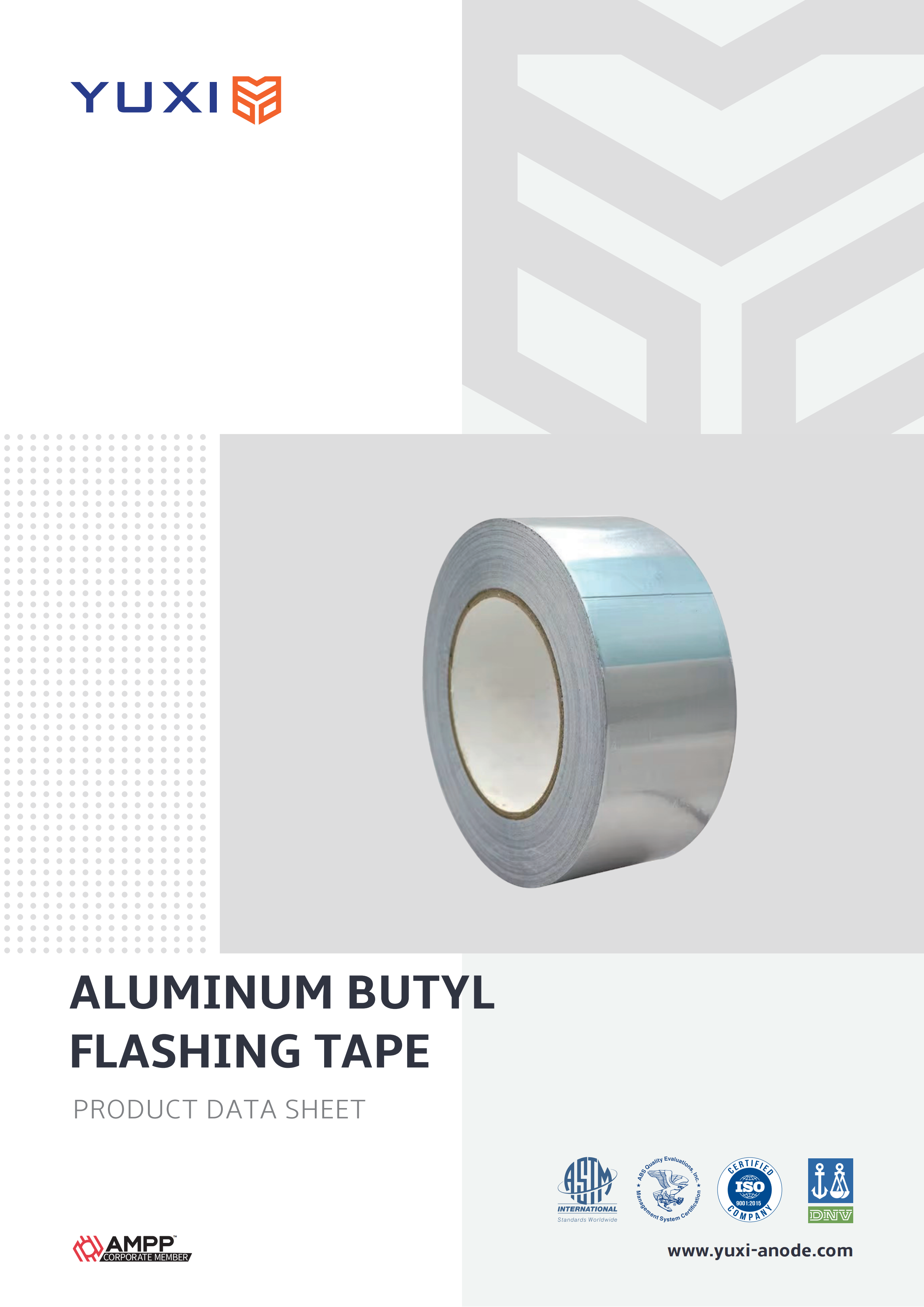

Aluminum Butyl Flashing Tape-Datasheet

Product datasheet including basic product information, technical data, instructions for use and size options.

Download Now!

We will do our best to respond within 3 business day (Monday to Friday 8:30 am – 5:30 pm) when we received your inquiry. If you are in urgent to get the quote, please submit your request via our online form or email us directly to info@yuxi-anode.com . Do specify the dimensions, quantity and delivery location, if you preferred to get a quick reply.

We are pleased to offer the samples upon the payment of nominal sample fee and freight charge. But the sample cost can be refund if your first order that meets the specified value.

Generally regular sample in stock can be delivered in 7-10 days after receipt of payment. But it takes around 15-30 days if the goods are out of stock.

The MOQ varies depending on the product. Please feel free to check with us for specific items.

Absolutely! We have in-house industrial design and engineering teams that can help you find the most comprehensive solution by tailoring to the specific needs of your project — from concept to completion. Our experts will draw up an all-in-one plan that meets your functionality requirements and expense budget.

For most regular items, the standard lead time is approximately 45 days. For customized items, the estimated lead time will be advised by our sales representatives. However, actual production time normally depends on order quantity and specifications.

We support both sea and air freight options: sea freight for cost-effectiveness and air freight for speed. We have reliable partnerships with major air freight carriers like DHL, UPS, FedEx. Please let us know your preference. A full set of shipping documents (including proforma invoice, packing list, certificate of origin, etc.) will be prepared for custom clearance.

T/T and L/C are the most common forms of payment, specific terms can be discussed with you prior to you issuing a purchase order.

If you want to arrange the payment by credit card, you should place an order through our e-commerce platform Alibaba or MIC.
