YUXI’s discrete anode is made of tubular shaped MMO mesh welded with a tinanium strip or rod. It is primarily used for the cost-effective cathodic protection of thick steel reinforced concrete elements in relatively compact structures such as beams, columns or piles in tidal / splash zones where the application of ribbon anodes leads to grout acidification in most cases.
Our MMO discrete mesh anodes are manufactured from high-tensile titanium, which meets commercially ASTM B265 Grade I standards.
Whether operating in soil, mud, fresh water or seawater, mixed metal oxide coatings demonstrate high chemical stability, even in environments with low pH values. Depend on the form of usage, the coatings can be mixed of two or more metal oxides such as iridium oxides (IrO2), tantalum oxides (Ta2O5) and ruthenium oxides (RuO2). Based upon accelerated life testing conducted by an independent laboratory, our MMO coating has been proven to be superior to other similar products in the market.
* We can produce anodes with different nobel metal oxide ratios and differing coating thickness as specific required.
| Category | Discrete Anode |
|---|---|
| Substrate | Titanium |
| Shape | Tubular |
| Coating Composition | Iridium Oxides (IrO2), Ruthenium Oxides (RuO2), Tantalum Oxides (Ta2O5) |
| Applicable Environment | Concrete |
| Application | Reinforced Concrete Building |
| Certification | ABS |

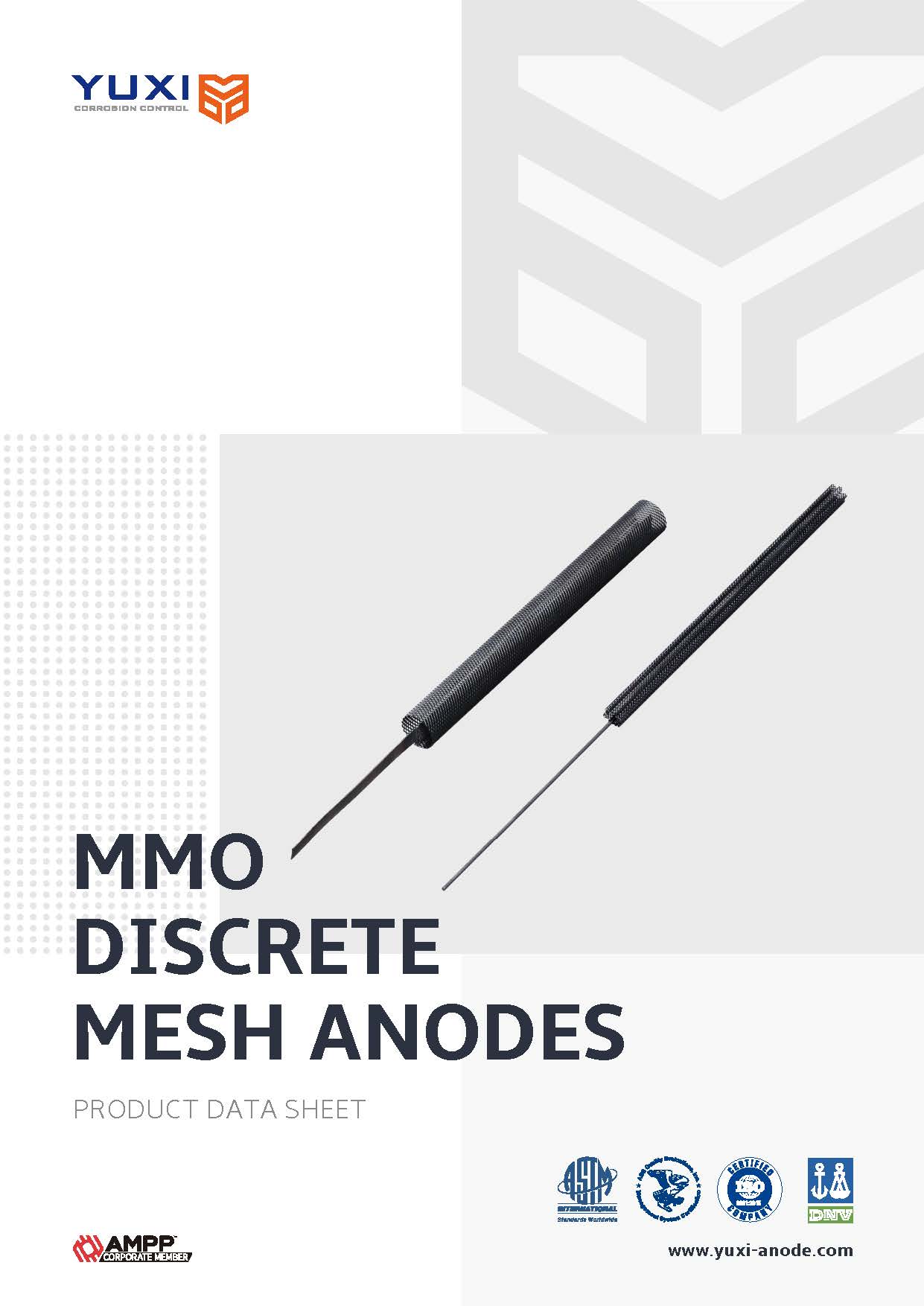

Product datasheet including basic product information, technical data, instructions for use and size options.
